Lindy LIN-38359

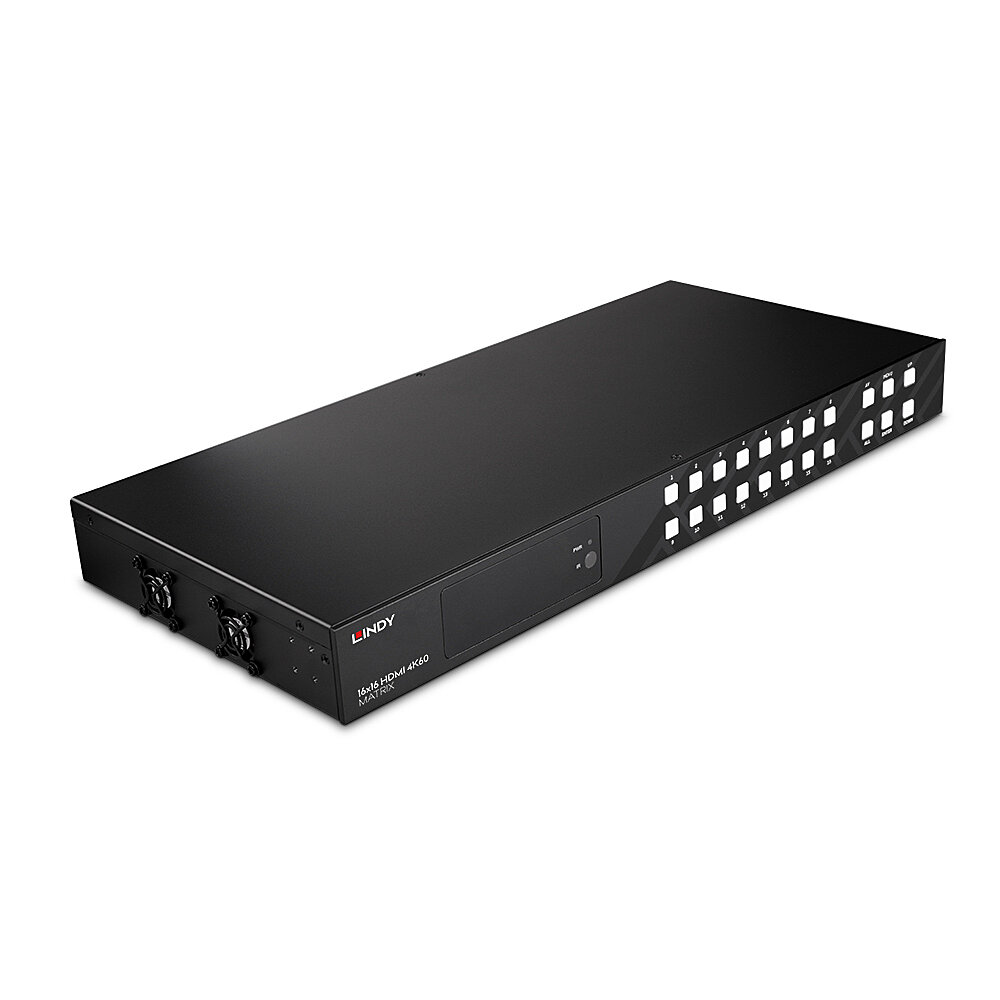

16x16 HDMI 4K60 Matrix (Connect 16 4K UHD source devices to 16 4K UHD screens)
Üretici: Lindy
Stok Kodu: LIN-38359
<h3> <a href="https://www.lindy.co.uk/audio-video-c2/matrix-switches-splitters-c166/16x16-hdmi-4k60-matrix-p14930/s15090?cid=GBP&amp;glCurrency=GBP&amp;glCountry=GB">https://www.lindy.co.uk/audio-video-c2/matrix-switches-splitters-c166/16x16-hdmi-4k60-matrix-p14930/s15090?cid=GBP&amp;glCurrency=GBP&amp;glCountry=GB</a></h3> <h3> &nbsp;</h3> <h3> Technical details</h3> <br /> <p> &nbsp;</p> <p> <b>Specifications</b></p> <ul> <li> AV Interface: HDMI®</li> <li> Interface Standard: HDMI® 2.0b</li> <li> Supported Bandwidth: 18Gbps</li> <li> Maximum Resolution: 3840x2160@60Hz RGB 8bit</li> <li> HDCP Support: 2.2</li> <li> Supported Audio: <ul> <li> HDMI® Audio Pass-through up to 7.1CH</li> <li> Coax up to 5.1CH</li> </ul> </li> <li> IR Support: 38kHz</li> <li> CEC Support: Yes</li> <li> Serial Interface: RS-232</li> <li> LED / LCD Display: OLED</li> <li> Control: Push Buttons, IR, RS-232, IP&nbsp;</li> <li> Special Features: ARC, 4K to 1080p Output Downscaler, Dolby Vision,Dolby Atmos, HDR 10</li> </ul> <p> &nbsp;</p> <p> <b>Connectors</b></p> <ul> <li> Input: 16 x HDMI® (Female)</li> <li> Output: 16 x HDMI® (Female), 16 x Coax (Female)</li> <li> Control: RS-232 (Female), RJ45 (Female)&nbsp;</li> <li> Power: 5.5/2.5mm</li> </ul> <p> &nbsp;</p> <p> <b>Physical Properties</b></p> <ul> <li> Dimensions (approx.) WxDxH: 440x200x45mm (17.32x7.87x1.77in)</li> <li> Housing Material: Metal</li> <li> Net Weight: 2.83kg (6.24lb)</li> <li> Operating Temperature: -10°C - 45°C (14°F -113°F)</li> <li> Storage Temperature: -20°C - 60°C (-4°F - 140°F)</li> <li> Humidity: 20 - 90% (non-condensing)</li> <li> Power Requirements: 24VDC 3.75A</li> <li> MTBF: 50.000 hours</li> <li> Colour: Black</li> </ul> <p> &nbsp;</p> <p> <b>Miscellaneous</b></p> <ul> <li> Packaging Type: Carton box</li> <li> Packaging Dimensions: 510x328x95mm (20.08x12.91x3.74in)</li> <li> Gross Weight:&nbsp;4.06kg (8.95lb)</li> <li> Warranty (Years): 2</li> <li> Product Compliance: CE, UKCA, FCC, RoHS &amp; REACH, CP65</li> </ul> <p> &nbsp;</p> <p> <b>Package Contents</b></p> <ul> <li> HDMI® Matrix</li> <li> IR Remote Control</li> <li> Mounting Brackets</li> <li> Multi-Country PSU (UK, EU, US &amp; AUS)</li> <li> (UK, EU, US &amp; AUS) Mains Cables</li> <li> Lindy Manual</li> </ul> <p> &nbsp;</p> <p> <a href="https://www.lindy.eu/16x16-HDMI-4K60-Matrix.htm?websale8=ld0101.ld021102&amp;pi=38359&amp;ci=20" target="_blank">https://www.lindy.eu/16x16-HDMI-4K60-Matrix.htm?websale8=ld0101.ld021102&amp;pi=38359&amp;ci=20</a></p> <p> &nbsp;</p>
154087,92 TL
140679,88 TL
increase decrease
<h3> <a href="https://www.lindy.co.uk/audio-video-c2/matrix-switches-splitters-c166/16x16-hdmi-4k60-matrix-p14930/s15090?cid=GBP&amp;glCurrency=GBP&amp;glCountry=GB">https://www.lindy.co.uk/audio-video-c2/matrix-switches-splitters-c166/16x16-hdmi-4k60-matrix-p14930/s15090?cid=GBP&amp;glCurrency=GBP&amp;glCountry=GB</a></h3> <h3> &nbsp;</h3> <h3> Technical details</h3> <br /> <p> &nbsp;</p> <p> <b>Specifications</b></p> <ul> <li> AV Interface: HDMI®</li> <li> Interface Standard: HDMI® 2.0b</li> <li> Supported Bandwidth: 18Gbps</li> <li> Maximum Resolution: 3840x2160@60Hz RGB 8bit</li> <li> HDCP Support: 2.2</li> <li> Supported Audio: <ul> <li> HDMI® Audio Pass-through up to 7.1CH</li> <li> Coax up to 5.1CH</li> </ul> </li> <li> IR Support: 38kHz</li> <li> CEC Support: Yes</li> <li> Serial Interface: RS-232</li> <li> LED / LCD Display: OLED</li> <li> Control: Push Buttons, IR, RS-232, IP&nbsp;</li> <li> Special Features: ARC, 4K to 1080p Output Downscaler, Dolby Vision,Dolby Atmos, HDR 10</li> </ul> <p> &nbsp;</p> <p> <b>Connectors</b></p> <ul> <li> Input: 16 x HDMI® (Female)</li> <li> Output: 16 x HDMI® (Female), 16 x Coax (Female)</li> <li> Control: RS-232 (Female), RJ45 (Female)&nbsp;</li> <li> Power: 5.5/2.5mm</li> </ul> <p> &nbsp;</p> <p> <b>Physical Properties</b></p> <ul> <li> Dimensions (approx.) WxDxH: 440x200x45mm (17.32x7.87x1.77in)</li> <li> Housing Material: Metal</li> <li> Net Weight: 2.83kg (6.24lb)</li> <li> Operating Temperature: -10°C - 45°C (14°F -113°F)</li> <li> Storage Temperature: -20°C - 60°C (-4°F - 140°F)</li> <li> Humidity: 20 - 90% (non-condensing)</li> <li> Power Requirements: 24VDC 3.75A</li> <li> MTBF: 50.000 hours</li> <li> Colour: Black</li> </ul> <p> &nbsp;</p> <p> <b>Miscellaneous</b></p> <ul> <li> Packaging Type: Carton box</li> <li> Packaging Dimensions: 510x328x95mm (20.08x12.91x3.74in)</li> <li> Gross Weight:&nbsp;4.06kg (8.95lb)</li> <li> Warranty (Years): 2</li> <li> Product Compliance: CE, UKCA, FCC, RoHS &amp; REACH, CP65</li> </ul> <p> &nbsp;</p> <p> <b>Package Contents</b></p> <ul> <li> HDMI® Matrix</li> <li> IR Remote Control</li> <li> Mounting Brackets</li> <li> Multi-Country PSU (UK, EU, US &amp; AUS)</li> <li> (UK, EU, US &amp; AUS) Mains Cables</li> <li> Lindy Manual</li> </ul> <p> &nbsp;</p> <p> <a href="https://www.lindy.eu/16x16-HDMI-4K60-Matrix.htm?websale8=ld0101.ld021102&amp;pi=38359&amp;ci=20" target="_blank">https://www.lindy.eu/16x16-HDMI-4K60-Matrix.htm?websale8=ld0101.ld021102&amp;pi=38359&amp;ci=20</a></p> <p> &nbsp;</p>
*
*
*
