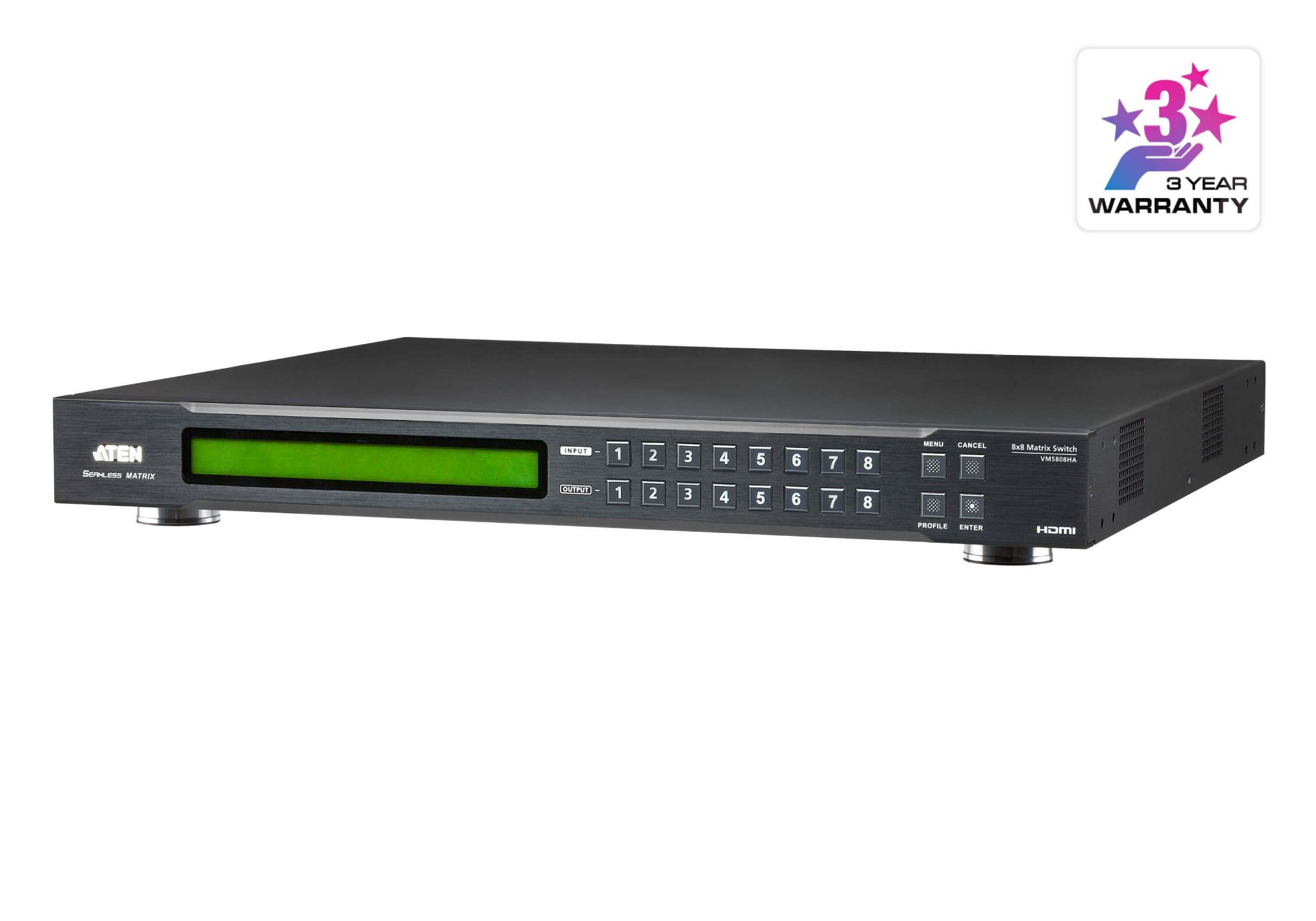

<div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <ul> <li> Routes any of 8 HDMI sources to any of 8 HDMI displays</li> <li> Local HDMI output – enables previewing of up to 8 video sources in a<a href="https://www.aten.com/global/en/product-landing-page/multi-view-kvmp-switches/?utm_medium=internal_link" target="_blank"> multi-view</a> window</li> <li> Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-58" target="_blank"> Video Matrix</a> Control app, and<a href="https://www.aten.com/controlsystem/?utm_medium=internal_link" target="_blank"> ATEN Control System</a></li> <li> Device status can be viewed and controlled via ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-58" target="_blank"> Video Matrix</a> Control App</li> <li> Video Wall functionality via intuitive web GUI* allows for customization of up to 16 layouts for any type of video walls</li> <li> Built-in scaler automatically converts input resolutions for optimal appearance on the display</li> <li> FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate</li> <li> ATEN<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a> technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission</li> <li> EDID Expert – selects optimum<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> EDID</a> settings for smooth power-up, high-quality display, and use of the best resolution across different screens</li> <li> Audio enabled; HDMI audio can be extracted to stereo audio</li> <li> HDMI (3D, Deep color);<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> HDCP</a> 1.4</li> <li> Supports Dolby True HD and DTS HD Master audio</li> <li> Supports Consumer Electronics Control (CEC)</li> <li> ESD protection for HDMI</li> <li> Firmware upgradeable</li> <li> Rack mountable (1U design)<br /> <br /> *Note:<br /> 1. If<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a>ing is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a>ing is a must.<br /> 2. Videos may not display within range when<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> Seamless Switch</a> or Video Wall is enabled, in which case please adjust the display settings on your device.</li> </ul> <p> </p> <p> <br /> </p> <table border="1" cellpadding="0" cellspacing="0" style="width: 1112px" width="1111"> <colgroup> <col /> <col span="2" /> </colgroup> <tbody> <tr height="22"> <td height="308" rowspan="14" style="height:308px;width:205px;"> Input Resolutions</td> <td style="width:40%;"> 1080P HDMI</td> <td style="width:40%;"> 720 x 480p 60 Hz (4:3) / (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 640 x 480 @ 60/72/75 Hz</td> <td style="width:453px;"> 1280 x 720p 60 Hz (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 800 x 600 @ 56/60/72/75 Hz</td> <td style="width:453px;"> 1920 x 1080i 60 Hz (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1024 x 768 @ 60/70/75 Hz</td> <td style="width:453px;"> 1920 x 1080p 60 Hz (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1280 x 800 @ 60 Hz</td> <td style="width:453px;"> 720 x 576p 50 Hz (4:3) / (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1280 x 1024 @ 60/75 Hz </td> <td style="width:453px;"> 1280x720p 50Hz (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1366 x 768 @ 60 Hz</td> <td style="width:453px;"> 1920 x 1080i 50 Hz (16:9)</td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1400 x 1050 @ 60 Hz</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1440 x 900 @ 60 Hz</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1600 x 1200 @ 60 Hz</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1680 x 1050 @ 60 Hz</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1920 x 1080 @ 60 Hz</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 1920 x 1200 @ 60 Hz (Reduced Blanking)</td> <td> </td> </tr> <tr height="22"> <td height="22" style="height:22px;width:453px;"> 640 x 480p 60 Hz (4:3)</td> </tr> </tbody> </table> <table border="1"> <tbody> <tr> <td colspan="2"> Video Input</td> </tr> <tr> <td> Interfaces</td> <td> 8 x HDMI Type A Female (Black)</td> </tr> <tr> <td> Impedance</td> <td> 100 Ω</td> </tr> <tr> <td> Max. Distance</td> <td> 5.0 m</td> </tr> <tr> <td colspan="2"> Video Output</td> </tr> <tr> <td> Interfaces</td> <td> 8 x HDMI Type A Female (Black)<br /> (Array Mode): 1 x HDMI Type A Female (Black)</td> </tr> <tr> <td> Impedance</td> <td> 100 Ω</td> </tr> <tr> <td> Max. Distance</td> <td> 15 m</td> </tr> <tr> <td colspan="2"> Video</td> </tr> <tr> <td> Max. Data Rate</td> <td> 6.75 Gbps (2.25 Gbps Per Lane)</td> </tr> <tr> <td> Max. Pixel Clock</td> <td> 225 MHz</td> </tr> <tr> <td> Compliance</td> <td> HDMI (3D, Deep Color)<br /> HDCP 1.4 Compatible<br /> Consumer Electronics Control (CEC)</td> </tr> <tr> <td> Max. Resolution</td> <td> Up to 1080p</td> </tr> <tr> <td> Max. Distance</td> <td> Up to 15 m</td> </tr> <tr> <td colspan="2"> Audio</td> </tr> <tr> <td> Output</td> <td> 1 x Mini Stereo Jack Female (Green)</td> </tr> <tr> <td colspan="2"> Control</td> </tr> <tr> <td> RS-232</td> <td> Connector: 1 x DB-9 Female (Black)<br /> Baud rate and protocol:<br /> Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No</td> </tr> <tr> <td> Ethernet</td> <td> 1 x RJ-45 Female</td> </tr> <tr> <td> EDID Settings</td> <td> EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)</td> </tr> <tr> <td colspan="2"> Connectors</td> </tr> <tr> <td> Power</td> <td> 1 x 3-Prong AC Socket</td> </tr> <tr> <td colspan="2"> Power</td> </tr> <tr> <td> Maximum Input Power Rating</td> <td> 100-240 VAC; 50-60 Hz; 1.0A</td> </tr> <tr> <td> Power Consumption</td> <td> AC110V:58.1W:272BTU/h<br /> AC220V:56.6W:265BTU/h<br /> <br /> Note:<br /> ● The measurement in Watts indicates the typical power consumption of the device with no external loading.<br /> ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.</td> </tr> <tr> <td colspan="2"> Environmental</td> </tr> <tr> <td> Operating Temperature</td> <td> 0-40°C</td> </tr> <tr> <td> Storage Temperature</td> <td> -20 - 60°C</td> </tr> <tr> <td> Humidity</td> <td> 0 - 80% RH, Non-Condensing</td> </tr> <tr> <td colspan="2"> Physical Properties</td> </tr> <tr> <td> Housing</td> <td> Metal</td> </tr> <tr> <td> Weight</td> <td> 5.54 kg ( 12.2 lb )</td> </tr> <tr> <td> Dimensions (L x W x H)</td> <td> 43.24 x 37.82 x 4.40 cm<br /> (17.02 x 14.89 x 1.73 in.)</td> </tr> <tr> <td> Carton Lot</td> <td> 1 pc</td> </tr> <tr> <td> Note</td> <td colspan="1"> For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.</td> </tr> </tbody> </table> </div> </div> <p> </p>
