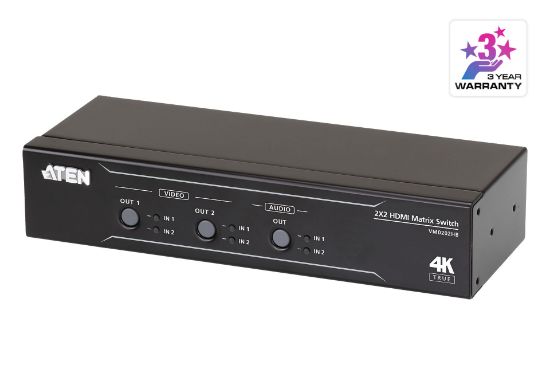

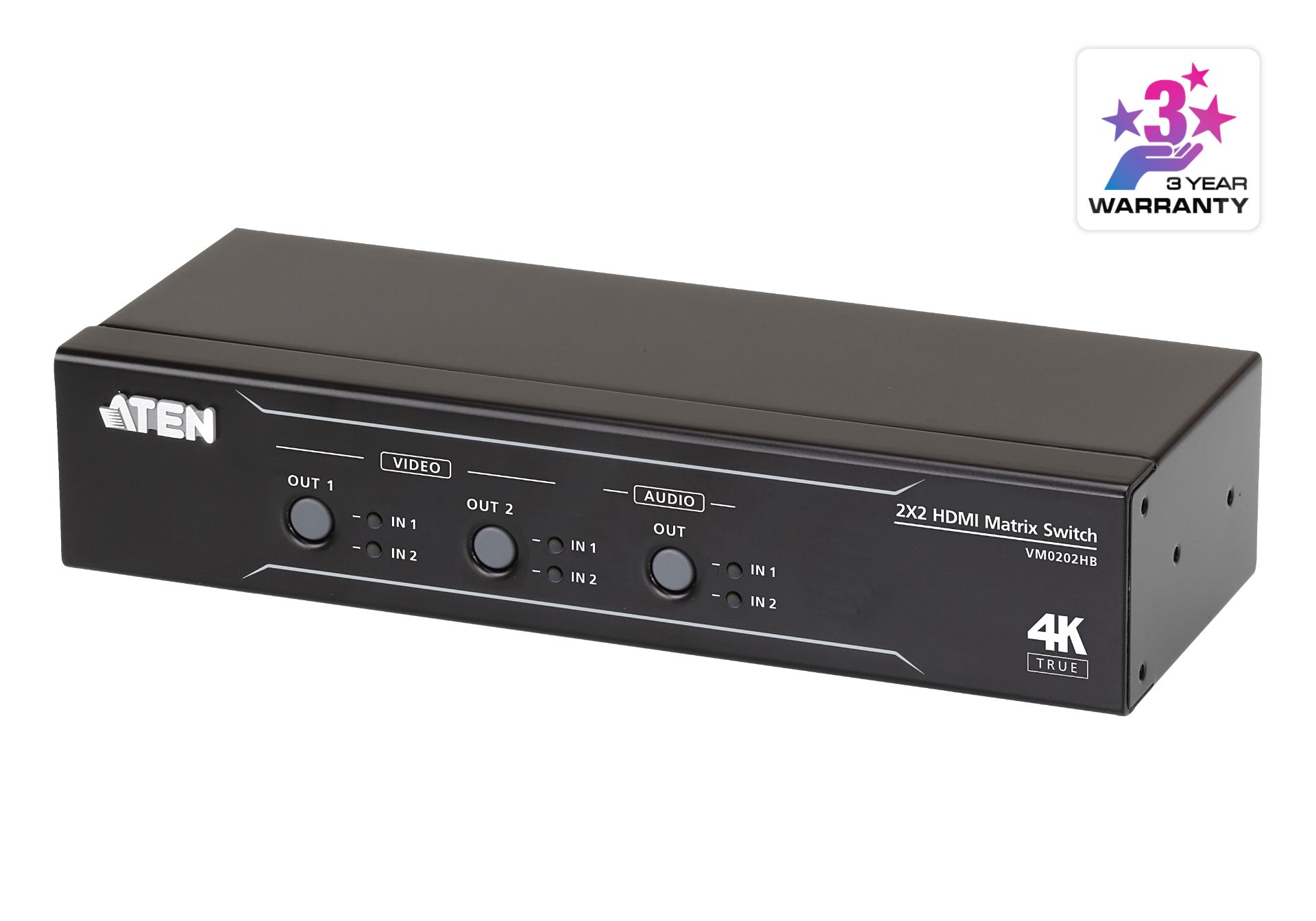

<div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <p> <img alt="" src="http://www.bimel.com.tr/resim/?s=23976" style="width: 400px; height: 312px; float: left; margin: 20px;" /></p> <ul> <li> Connects 2 HDMI sources to any 2 HDMI displays</li> <li> Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)</li> <li> Supports<a href="https://www.aten.com/global/en/product-landing-page/true-4k-hdr/?utm_medium=internal_link" target="_blank"> True 4K</a> resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and<a href="https://www.aten.com/global/en/resources/feature-articles/true-4k-hdr/?utm_medium=internal_link" target="_blank"> HDR</a></li> <li> Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio</li> <li> Supports Dolby True HD and DTS HD Master Audio</li> <li> Auto switching – automatically detects and switches to a new source once connected (Default: off)</li> <li> Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control</li> <li> Long-distance transmission up to 5 meters</li> <li> HDMI (3D, 4K, Deep Color);<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> HDCP</a> 2.2 Compatible</li> <li> Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control</li> <li> EDID Expert™ – selects optimum<a href="https://www.aten.com/global/en/resources/white-papers/?utm_medium=internal_link#a-47" target="_blank"> EDID</a> settings for smooth power-up,high-quality display and use of the best video resolution across different screens</li> <li> Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections</li> <li> All metal casing</li> <li> Firmware upgradable</li> <li> Rack mountable</li> </ul> </div> </div> <p> </p> <table border="1" class="spec_table"> <tbody> <tr> <td class="title" colspan="2"> Video Input</td> </tr> <tr> <td class="subtitle"> Interfaces</td> <td class="value"> 2 x HDMI Type A Female (Black)</td> </tr> <tr> <td class="subtitle"> Impedance</td> <td class="value"> 100 Ώ</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> 5.0 m</td> </tr> <tr> <td class="title" colspan="2"> Video Output</td> </tr> <tr> <td class="subtitle"> Interfaces</td> <td class="value"> 2 x HDMI Type A Female (Black)</td> </tr> <tr> <td class="subtitle"> Impedance</td> <td class="value"> 100 Ώ</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> 5.0 m</td> </tr> <tr> <td class="title" colspan="2"> Video</td> </tr> <tr> <td class="subtitle"> Max. Data Rate</td> <td class="value"> 18.0 Gbps (6.0 Gbps Per Lane)</td> </tr> <tr> <td class="subtitle"> Max. Pixel Clock</td> <td class="value"> 600 MHz</td> </tr> <tr> <td class="subtitle"> Compliance</td> <td class="value"> HDMI (3D, 4K, Deep Color)<br /> HDCP 2.2 Compatible<br /> Consumer Electronics Control (CEC)</td> </tr> <tr> <td class="subtitle"> Max. Resolution</td> <td class="value"> Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)</td> </tr> <tr> <td class="subtitle"> Max. Distance</td> <td class="value"> Up to 5.0 m</td> </tr> <tr> <td class="title" colspan="2"> Audio</td> </tr> <tr> <td class="subtitle"> Output</td> <td class="value"> 1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole</td> </tr> <tr> <td class="title" colspan="2"> Control</td> </tr> <tr> <td class="subtitle"> USB</td> <td class="value"> 1 x Micro USB<br /> F/W upgrade</td> </tr> <tr> <td class="subtitle"> RS-232</td> <td class="value"> Connector: 1 x DB-9 Female (Black)<br /> Baud rate and protocol:<br /> Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No</td> </tr> <tr> <td class="subtitle"> IR</td> <td class="value"> 1 x Mini Stereo Jack Female (Black)</td> </tr> <tr> <td class="title"> EDID Settings</td> <td class="value"> EDID Mode: Default / Port1 / Remix</td> </tr> <tr> <td class="title" colspan="2"> Connectors</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x DC Jack (Black)</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> DC5V:2.47W:11BTU</td> </tr> <tr> <td class="title" colspan="2"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0-40°C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> -20 - 60°C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0 - 80% RH, Non-Condensing</td> </tr> <tr> <td class="title" colspan="2"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Metal</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 0.60 kg ( 1.32 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 20.00 x 7.60 x 4.20 cm<br /> (7.87 x 2.99 x 1.65 in.)</td> </tr> </tbody> </table> <p> </p>
