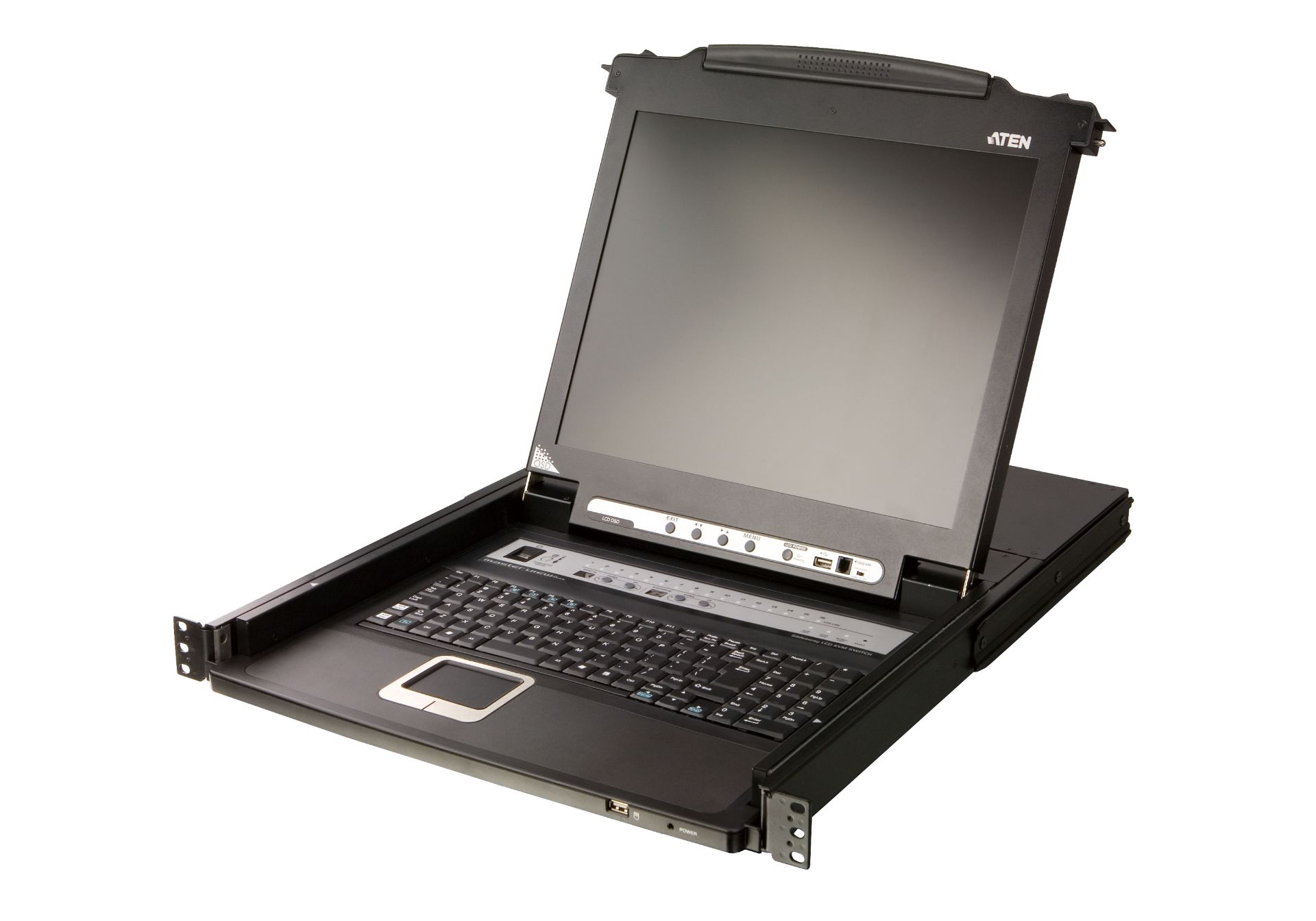

Aten ATEN-CL5716MWT

<ul> <li> Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions</li> <li> Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing</li> <li> Available with or without fingerprint identification reader¹</li> <li> Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers</li> <li> Daisy-chain up to 31 additional units – controls up to 512 computers from a single console</li> <li> Dual interface – supports computers and console with PS/2 or USB keyboards and mice</li> <li> USB port allows each computer to access USB peripherals² (inapplicable to CL5716MW)</li> <li> LCD module rotates up to 120 degrees for a more comfortable viewing angle</li> <li> Multiplatform support – Windows, Linux, Mac, and Sun</li> <li> Supports multimedia USB keyboards for PC, Mac and Sun</li> <li> Auto PS/2 and USB interface detection</li> <li> Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere</li> <li> Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)</li> <li> Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW)</li> <li> No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus</li> <li> Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position</li> <li> Port names automatically reconfigured when station sequence is changed</li> <li> Two level password security – only authorized users can view and control computers</li> <li> Supports one administrator and four user accounts with separate profiles</li> <li> Auto Scan mode enables continuous monitoring of user-selected computers</li> <li> Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation</li> <li> Hot pluggable</li> <li> Beeper on / off via hotkey and OSD</li> <li> Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable</li> <li> Optional rack mount kits available including easy installation options</li> <li> Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese<br /> <br /> Note:<br /> 1. The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.<br /> 2. The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5716MW).</li> </ul> <p> &nbsp;</p> <table border="1" class="spec_table"> <tbody> <tr> <td class="function"> Function</td> <td class="modelname"> CL5716M</td> <td class="modelname"> CL5716MW</td> <td class="modelname"> CL5716N</td> </tr> <tr> <td class="title" colspan="4"> Computer Connections</td> </tr> <tr> <td class="subtitle"> Direct</td> <td class="value"> 16</td> <td class="value"> 16</td> <td class="value"> 16</td> </tr> <tr> <td class="subtitle"> Maximum</td> <td class="value"> 512 (via Daisy-chain)</td> <td class="value"> 512 (via Daisy-chain)</td> <td class="value"> 512 (via Daisy-chain)</td> </tr> <tr> <td class="title"> Port Selection</td> <td class="value"> OSD, Hotkey, Pushbutton</td> <td class="value"> OSD, Hotkey, Pushbutton</td> <td class="value"> OSD, Hotkey, Pushbutton</td> </tr> <tr> <td class="title" colspan="4"> Connectors</td> </tr> <tr> <td class="subtitle"> KVM Ports</td> <td class="value"> 16 x SPHD Female (Yellow)</td> <td class="value"> 16 x SPHD Female (Yellow)</td> <td class="value"> 16 x SPHD Female (Yellow)</td> </tr> <tr> <td class="subtitle"> Daisy Chain Ports</td> <td class="value"> 1 x DB-25 Male</td> <td class="value"> 1 x DB-25 Male</td> <td class="value"> 1 x DB-25 Male</td> </tr> <tr> <td class="subtitle"> Firmware Upgrade</td> <td class="value"> 1 x RJ-11 Female</td> <td class="value"> 1 x RJ-11 Female</td> <td class="value"> 1 x RJ-11 Female</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x IEC 60320/C14</td> <td class="value"> 1 x IEC 60320/C14</td> <td class="value"> 1 x IEC 60320/C14</td> </tr> <tr> <td class="subtitle"> External Console Ports</td> <td class="value"> 1 x SPHD Male (Yellow)</td> <td class="value"> 1 x SPHD Male (Yellow)</td> <td class="value"> 1 x SPHD Male (Yellow)</td> </tr> <tr> <td class="subtitle"> External Mouse Port</td> <td class="value"> 1 x USB Type A Female (Front)</td> <td class="value"> 1 x USB Type A Female (Front)</td> <td class="value"> 1 x USB Type A Female (Front)</td> </tr> <tr> <td class="subtitle"> USB Port</td> <td class="value"> 1 x USB Type A Female</td> <td class="value"> N/A</td> <td class="value"> 1 x USB Type A Female</td> </tr> <tr> <td class="title" colspan="4"> Switches</td> </tr> <tr> <td class="subtitle"> Port Selection</td> <td class="value"> 2 x Pushbutton</td> <td class="value"> 2 x Pushbutton</td> <td class="value"> 2 x Pushbutton</td> </tr> <tr> <td class="subtitle"> Station Selection</td> <td class="value"> 2 x Pushbutton</td> <td class="value"> 2 x Pushbutton</td> <td class="value"> 2 x Pushbutton</td> </tr> <tr> <td class="subtitle"> Reset</td> <td class="value"> 1 x Semi-recessed Pushbutton</td> <td class="value"> 1 x Semi-recessed Pushbutton</td> <td class="value"> 1 x Semi-recessed Pushbutton</td> </tr> <tr> <td class="subtitle"> Firmware Upgrade</td> <td class="value"> 1 x Slide Switch</td> <td class="value"> 1 x Slide Switch</td> <td class="value"> 1 x Slide Switch</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x Rocker Switch</td> <td class="value"> 1 x Rocker Switch</td> <td class="value"> 1 x Rocker Switch</td> </tr> <tr> <td class="subtitle"> LCD Control</td> <td class="value"> 4 x Pushbutton</td> <td class="value"> 4 x Pushbutton</td> <td class="value"> 4 x Pushbutton</td> </tr> <tr> <td class="subtitle"> LCD Power</td> <td class="value"> 1 x LED Pushbutton</td> <td class="value"> 1 x LED Pushbutton</td> <td class="value"> 1 x LED Pushbutton</td> </tr> <tr> <td class="title" colspan="4"> LEDs</td> </tr> <tr> <td class="subtitle"> Online</td> <td class="value"> 16 (Orange)</td> <td class="value"> 16 (Orange)</td> <td class="value"> 16 (Orange)</td> </tr> <tr> <td class="subtitle"> Port ID</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> </tr> <tr> <td class="subtitle"> Station ID</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> <td class="value"> 2 x 7-segment LED Display (Orange)</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 (Dark Green)</td> <td class="value"> 1 (Dark Green)</td> <td class="value"> 1 (Dark Green)</td> </tr> <tr> <td class="subtitle"> Lock</td> <td class="value"> 1 x Num Lock (Green)<br /> 1 x Caps Lock (Green)<br /> 1 x Scroll Lock (Green)</td> <td class="value"> 1 x Num Lock (Green)<br /> 1 x Caps Lock (Green)<br /> 1 x Scroll Lock (Green)</td> <td class="value"> 1 x Num Lock (Green)<br /> 1 x Caps Lock (Green)<br /> 1 x Scroll Lock (Green)</td> </tr> <tr> <td class="subtitle"> LED Illumination Light</td> <td class="value"> 1 x LED Illumination Light</td> <td class="value"> 1 x LED Illumination Light</td> <td class="value"> 1 x LED Illumination Light</td> </tr> <tr> <td class="title" colspan="4"> Panel Spec</td> </tr> <tr> <td class="subtitle"> LCD Module</td> <td class="value"> 17" TFT-LCD</td> <td class="value"> 17.3" TFT-LCD</td> <td class="value"> 19" TFT-LCD</td> </tr> <tr> <td class="subtitle"> Resolution</td> <td class="value"> 1280 x 1024 @ 75 Hz</td> <td class="value"> 1920 x 1080 @ 60 Hz</td> <td class="value"> 1280 x 1024 @ 75 Hz</td> </tr> <tr> <td class="subtitle"> Response time</td> <td class="value"> 5 ms</td> <td class="value"> 16 ms</td> <td class="value"> 5 ms</td> </tr> <tr> <td class="subtitle"> Viewing Angle</td> <td class="value"> 170° (H), 160° (V)</td> <td class="value"> 170° (H), 170° (V)</td> <td class="value"> 170° (H), 160° (V)</td> </tr> <tr> <td class="subtitle"> Pixel Pitch</td> <td class="value"> 0.264 mm x 0.264 mm</td> <td class="value"> 0.1989 mm x 0.1989 mm</td> <td class="value"> 0.294 mm x 0.294 mm</td> </tr> <tr> <td class="subtitle"> Support Color</td> <td class="value"> 16.77M colors</td> <td class="value"> 16.77M colors</td> <td class="value"> 16.77M colors</td> </tr> <tr> <td class="subtitle"> Contrast Ratio</td> <td class="value"> 1000 : 1</td> <td class="value"> 800 : 1</td> <td class="value"> 1000 : 1</td> </tr> <tr> <td class="subtitle"> Luminance</td> <td class="value"> 250 cd/m²</td> <td class="value"> 250 cd/m²</td> <td class="value"> 250 cd/m²</td> </tr> <tr> <td class="title" colspan="4"> Video</td> </tr> <tr> <td class="subtitle"> Input Video Resolution</td> <td class="value"> up to 1920 × 1200 @ 60 Hz;<br /> 1280 × 1024 @ 75 Hz, DDC2B</td> <td class="value"> up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only);<br /> 1920 × 1080 @ 60 Hz, DDC2B</td> <td class="value"> up to 1920 × 1200 @ 60 Hz;<br /> 1280 × 1024 @ 75 Hz, DDC2B</td> </tr> <tr> <td class="title"> Scan Interval</td> <td class="value"> 1-255 seconds</td> <td class="value"> 1-255 seconds</td> <td class="value"> 1-255 seconds</td> </tr> <tr> <td class="title" colspan="4"> Emulation</td> </tr> <tr> <td class="subtitle"> Keyboard / Mouse</td> <td class="value"> PS/2, USB</td> <td class="value"> PS/2, USB</td> <td class="value"> PS/2, USB</td> </tr> <tr> <td class="title"> Maximum Input Power Rating</td> <td class="value"> 100-240V AC, 50/60Hz, 1A</td> <td class="value"> 100-240V AC, 50/60Hz, 1A</td> <td class="value"> 100-240V AC, 50/60Hz, 1A</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> AC110V:24.7W:129BTU<br /> AC220V:25.8W:134BTU</td> <td class="value"> AC110V:14.8W:80BTU<br /> AC220V:15.6W:84BTU</td> <td class="value"> AC110V:26.9W:139BTU<br /> AC220V:27.9W:144BTU</td> </tr> <tr> <td class="title" colspan="4"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0-40°C</td> <td class="value"> 0-40°C</td> <td class="value"> 0-50°C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> -20-60°C</td> <td class="value"> -20-60°C</td> <td class="value"> -20-60°C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0-85% RH, Noncondensing</td> <td class="value"> 0-85% RH, Noncondensing</td> <td class="value"> 0-85% RH, Noncondensing</td> </tr> <tr> <td class="title" colspan="4"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Metal + Plastic</td> <td class="value"> Metal + Plastic</td> <td class="value"> Metal + Plastic</td> </tr> <tr> <td class="subtitle"> Rail Type</td> <td class="value"> Single Rail</td> <td class="value"> Single Rail</td> <td class="value"> Single Rail</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 13.59 kg ( 29.93 lb )</td> <td class="value"> 13.65 kg ( 30.07 lb )</td> <td class="value"> 13.65 kg ( 30.07 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 48.00 x 64.27 x 4.40 cm<br /> (18.9 x 25.3 x 1.73 in.)</td> <td class="value"> 48.00 x 68.92 x 4.40 cm<br /> (18.9 x 27.13 x 1.73 in.)</td> <td class="value"> 48.00 x 68.92 x 4.40 cm<br /> (18.9 x 27.13 x 1.73 in.)</td> </tr> <tr> <td class="title"> Note</td> <td class="value" colspan="3"> For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.</td> </tr> </tbody> </table> <p> &nbsp;</p> <div class="package-content"> <h3> Package Contents</h3> <ul> <li> 1x CL5716 LCD KVM Switch with standard Rack Mount Kit</li> <li> 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)</li> <li> 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)</li> <li> 1x Firmware Upgrade Cable</li> <li> 1x Power Cord (AC Power Models)</li> <li> 1x User Instructions</li> </ul> </div> <p> &nbsp;</p> <p> &nbsp;</p>
