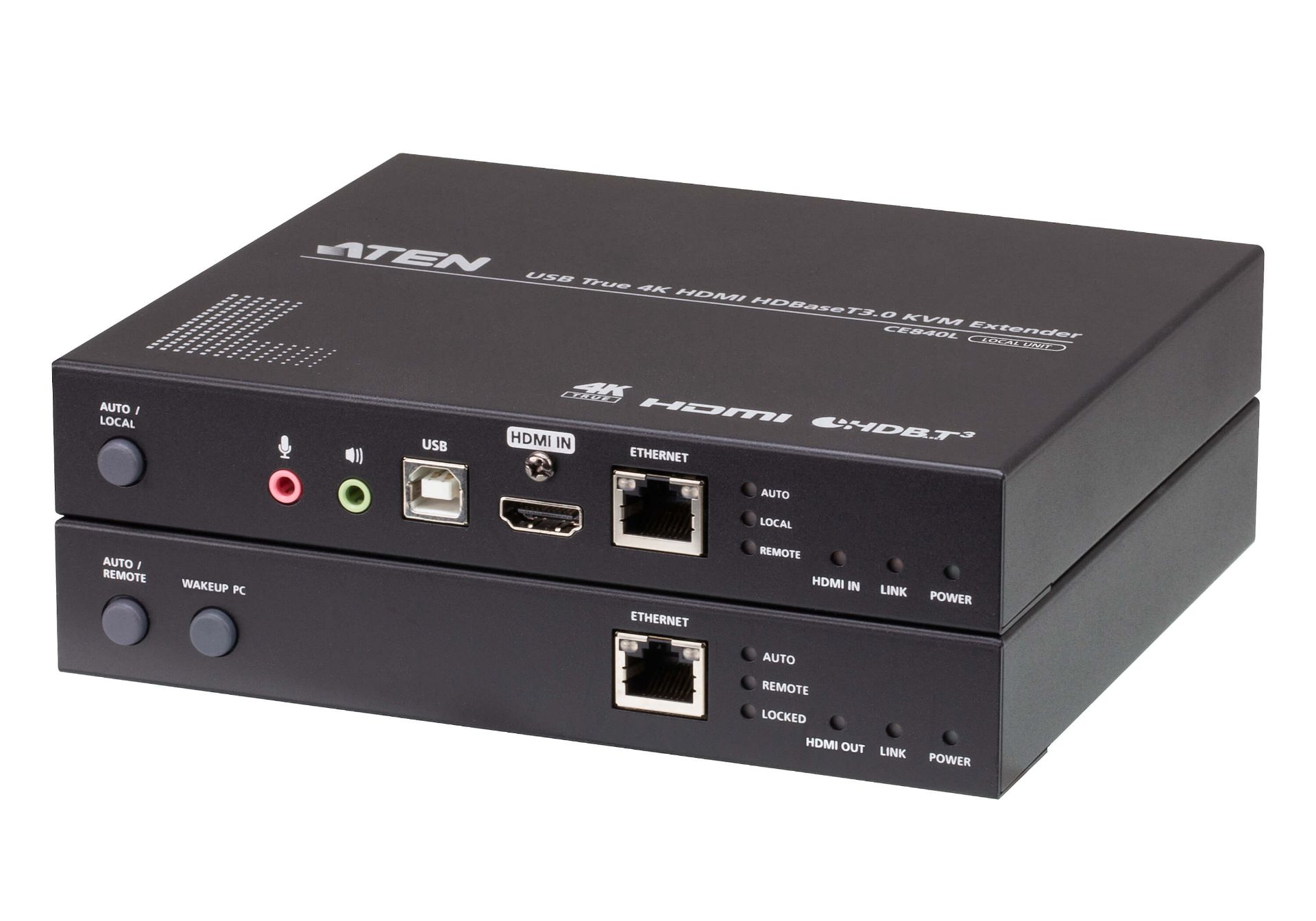

<div class="tab-content clearfix ui-tabs-panel ui-widget-content ui-corner-bottom tab-pane active" id="features-tab" role="tabpanel"> <div class="col-sm-12 col-lg-12"> <ul> <li> HDBaseT 3.0 – supports<a href="https://www.aten.com/global/en/product-landing-page/true-4k-hdr/?utm_medium=internal_link" target="_blank"> True 4K</a> HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN <a href="https://www.aten.com/global/en/products/cables/cat-6a-cables/2l-2920/?utm_medium=internal_link" target="_blank">2L-2920</a> Cat 6A Cable recommended) or above with no compression and zero latency</li> <li> Superior video quality – supports<a href="https://www.aten.com/global/en/resources/feature-articles/true-4k-hdr/?utm_medium=internal_link" target="_blank"> HDR</a>10+ and video resolutions up to<a href="https://www.aten.com/global/en/product-landing-page/true-4k-hdr/?utm_medium=internal_link" target="_blank"> True 4K</a> (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m</li> <li> Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends</li> <li> Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode</li> <li> Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection</li> <li> Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio</li> <li> HDCP2.3 and 2.2 compliant</li> <li> Supports widescreen formats</li> <li> Built-in 8KV/15KV ESD protection</li> <li> Firmware upgradable</li> <li> No software or driver installation required</li> <li> Rack-mountable</li> </ul> <div class="package-content"> <h3> </h3> <h3> Package Contents</h3> <ul> <li> 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit)</li> <li> 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit)</li> <li> 1x HDMI cable</li> <li> 1x microphone cable</li> <li> 1x speaker cable</li> <li> 1x USB Type-A to USB Type-B cable</li> <li> 2x mounting kits</li> <li> 8x foot pads</li> <li> 2x power adapters and power cords</li> <li> 1x user instructions</li> </ul> <p> </p> <br /> <table border="1" cellpadding="0" cellspacing="0" style="width: 834px" width="1111"> <colgroup> <col style="mso-width-source: userset; mso-width-alt: 6560; width: 154pt;" width="205" /> <col span="2" style="mso-width-source: userset; mso-width-alt: 14496; width: 340pt;" width="453" /> </colgroup> <tbody> <tr height="22" style="height: 16.5pt;"> <td class="xl65" height="308" rowspan="14" style="height: 231.0pt; width: 154pt;" width="205"> Input Resolutions</td> <td style="width: 40%;" width="453"> 640 x 480 @ 60/67/72/75 Hz</td> <td style="width: 40%;" width="453"> 720p 60 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 800 x 600 @ 56/60/72/75 Hz</td> <td> 1080i 60 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1024 x 768 @ 60/70/75 Hz</td> <td> 640 x 480 60Hz (4:3)</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1280 x 800 @ 60 Hz</td> <td> 576p 50 Hz (4:3)/(16:9)</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1280 x 1024 @ 60/75 Hz</td> <td> 720p 50 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1400 x 1050 @ 60 Hz</td> <td> 1080i 50 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1440 x 900 @ 60 Hz</td> <td> 1080p 24/25/30/50 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1600 x 1200 @ 60 Hz</td> <td> 3840 x 2160p 24/25/30/50/60 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1680 x 1050 @ 60 Hz</td> <td> 4096 x 2160p 24/25/30/50/60 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1920 x 1080 @ 60/120 Hz</td> <td> 3840 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1920 x 1200 @ 60 Hz</td> <td> 4096 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1920 x 1200 @ 60 Hz (Reduced Blanking)</td> <td> 1920 x 1080 @ 144 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 1080p 60 Hz</td> <td> 2560 x 1440 @ 144 Hz</td> </tr> <tr height="22" style="height: 16.5pt;"> <td height="22" style="height: 16.5pt;"> 480p 60 Hz (4:3) / (16:9)</td> <td> </td> </tr> </tbody> </table> <table class="spec_table"> <tbody> <tr> <td class="function"> Function</td> <td class="modelname"> CE840L</td> <td class="modelname"> CE840R</td> </tr> <tr> <td class="title" colspan="3"> Connectors</td> </tr> <tr> <td class="subtitle"> Console Ports</td> <td class="value"> 1 x HDMI (Female, Black)<br /> 4 x USB Type A (Female, White) *<br /> 1 x Mini Stereo Jack (Female, Green)<br /> 1 x Mini Stereo Jack (Female, Pink)<br /> <br /> * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match</td> <td class="value"> 1 x HDMI (Female, Black)<br /> 4 x USB Type A (Female, White) *<br /> 1 x Mini Stereo Jack (Female, Green)<br /> 1 x Mini Stereo Jack (Female, Pink)<br /> 1 x GbE (RJ-45 Female, Black)<br /> <br /> * 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match</td> </tr> <tr> <td class="subtitle"> KVM Ports</td> <td class="value"> 1 x HDMI (Female, Black)<br /> 1 x USB Type B (Female, White)<br /> 1 x Mini Stereo Jack (Female, Green)<br /> 1 x Mini Stereo Jack (Female, Pink)<br /> 1 x GbE (RJ-45 Female, Black)</td> <td class="value"> N/A</td> </tr> <tr> <td class="subtitle"> RS-232</td> <td class="value"> 1 x DB-9 Female (Black)</td> <td class="value"> 1 x DB-9 Male (Black)</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 x DC Jack (Black)</td> <td class="value"> 1 x DC Jack (Black)</td> </tr> <tr> <td class="subtitle"> Unit To Unit</td> <td class="value"> 1 x RJ-45 Female (Black, HDBaseT)</td> <td class="value"> 1 x RJ-45 Female (Black, HDBaseT)</td> </tr> <tr> <td class="title" colspan="3"> Video</td> </tr> <tr> <td class="subtitle"> Max. Data Rate</td> <td class="value"> 18Gbps (6Gbps per lane)</td> <td class="value"> 18Gbps (6Gbps per lane)</td> </tr> <tr> <td class="subtitle"> Max. Pixel Clock</td> <td class="value"> 600 MHz</td> <td class="value"> 600 MHz</td> </tr> <tr> <td class="subtitle"> Compliance</td> <td class="value"> HDMI (Deep Color, 4K/60Hz); 4K HDR+<br /> HDCP2.3 Compatible<br /> Consumer Electronics Control (CEC)*<br /> <br /> *The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.</td> <td class="value"> HDMI (Deep Color, 4K/60Hz); 4K HDR+<br /> HDCP2.3 Compatible<br /> Consumer Electronics Control (CEC)</td> </tr> <tr> <td class="subtitle"> Max. Resolution</td> <td class="value"> 4096 x 2160 @ 60Hz (4:4:4)<br /> 3840 x 2160 @ 60Hz (4:4:4)</td> <td class="value"> 4096 x 2160 @ 60Hz (4:4:4)<br /> 3840 x 2160 @ 60Hz (4:4:4)</td> </tr> <tr> <td class="subtitle"> Max. Resolutions / Distance</td> <td class="value"> 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)<br /> <br /> 4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)</td> <td class="value"> 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)<br /> <br /> 4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)</td> </tr> <tr> <td class="title" colspan="3"> LEDs</td> </tr> <tr> <td class="subtitle"> Power</td> <td class="value"> 1 (Green)</td> <td class="value"> 1 (Green)</td> </tr> <tr> <td class="subtitle"> Link</td> <td class="value"> 1 (Orange)</td> <td class="value"> 1 (Orange)</td> </tr> <tr> <td class="subtitle"> Video</td> <td class="value"> 1 x HDMI IN (Orange)</td> <td class="value"> 1 x HDMI OUT (Orange)</td> </tr> <tr> <td class="subtitle"> Console Status</td> <td class="value"> 3 x Local USB Keyboard/Mouse Authority Indicator (Green)</td> <td class="value"> 3 x Remote USB Keyboard/Mouse Authority Indicator (Green)</td> </tr> <tr> <td class="title" colspan="3"> Switches</td> </tr> <tr> <td class="subtitle"> Long Reach Mode Switch</td> <td class="value"> 1 x Slide Switch (Reserved)</td> <td class="value"> 1 x Slide Switch (Reserved)</td> </tr> <tr> <td class="subtitle"> Firmware Upgrade</td> <td class="value"> 1 x Slide Switch</td> <td class="value"> 1 x Slide Switch</td> </tr> <tr> <td class="title" colspan="3"> Pushbuttons</td> </tr> <tr> <td class="subtitle"> Wakeup button</td> <td class="value"> N/A</td> <td class="value"> 1 x Pushbutton</td> </tr> <tr> <td class="subtitle"> Operating Mode Selection</td> <td class="value"> 1 x Local USB Keyboard/Mouse Authority switch</td> <td class="value"> 1 x Remote USB Keyboard/Mouse Authority switch</td> </tr> <tr> <td class="title"> Power Consumption</td> <td class="value"> DC12V:7.36W:60BTU</td> <td class="value"> DC12V:7.37W:60BTU</td> </tr> <tr> <td class="title" colspan="3"> Environmental</td> </tr> <tr> <td class="subtitle"> Operating Temperature</td> <td class="value"> 0-40˚C</td> <td class="value"> 0-40˚C</td> </tr> <tr> <td class="subtitle"> Storage Temperature</td> <td class="value"> -20-60˚C</td> <td class="value"> -20-60˚C</td> </tr> <tr> <td class="subtitle"> Humidity</td> <td class="value"> 0-80% RH, Non-condensing</td> <td class="value"> 0-80% RH, Non-condensing</td> </tr> <tr> <td class="title" colspan="3"> Physical Properties</td> </tr> <tr> <td class="subtitle"> Housing</td> <td class="value"> Metal</td> <td class="value"> Metal</td> </tr> <tr> <td class="subtitle"> Weight</td> <td class="value"> 0.82 kg ( 1.81 lb )</td> <td class="value"> 0.81 kg ( 1.78 lb )</td> </tr> <tr> <td class="subtitle"> Dimensions (L x W x H)</td> <td class="value"> 17.82 x 15.60 x 2.88 cm<br /> (7.02 x 6.14 x 1.13 in.)</td> <td class="value"> 17.82 x 15.60 x 2.88 cm<br /> (7.02 x 6.14 x 1.13 in.)</td> </tr> <tr> <td class="title"> Note</td> <td class="value"> Long reach mode reserved for future improvement</td> <td class="value"> Long reach mode reserved for future improvement</td> </tr> <tr> <td class="title"> Note</td> <td class="value" colspan="2"> For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.</td> </tr> </tbody> </table> <p> </p> </div> <p> </p> </div> </div> <p> </p>
