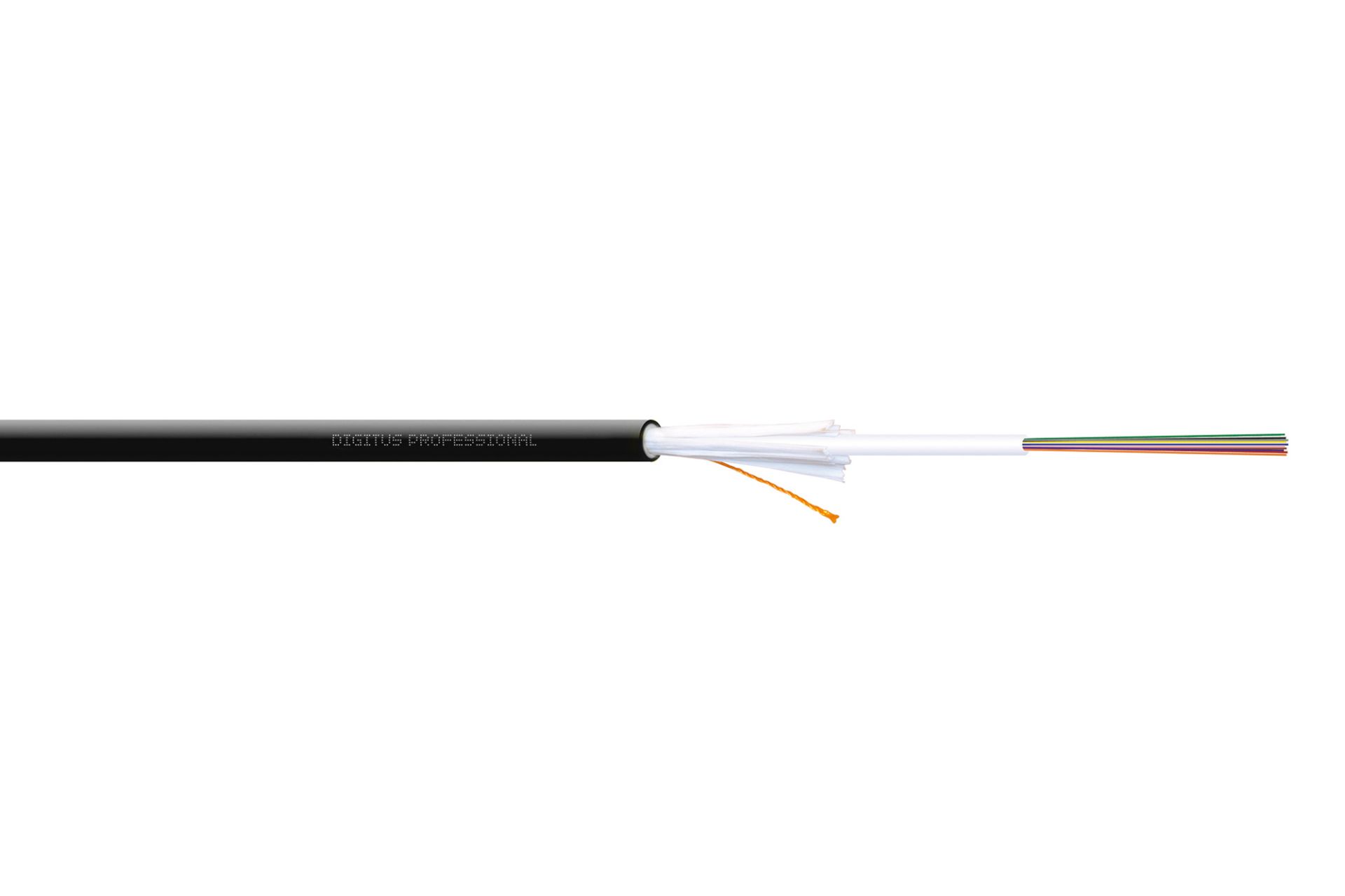

<ul> <li> LSZH – low smoke zero halogen</li> <li> UV-resistant</li> <li> Longitudinaly and laterally water-resistant</li> <li> Glass yarn armoured</li> <li> Non-metal rodent protection</li> <li> Metal free</li> <li> Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling)</li> <li> Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling)</li> <li> Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling)</li> <li> Zero Dispersion Wavelength : 1302 ~ 1324 nm</li> <li> Zero Dispersion Slope : ≤ 0.092 ps/nm 2 x km</li> <li> PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/√km</li> <li> Cable Cutoff Wavelength (λcc) : ≤ 1260 nm</li> <li> Macro bending Loss (100 turns ; Φ50nm) at 1550 nm : ≤ 0.05 dB</li> <li> Macro bending Loss (100 turns ; Φ50nm) at 1625 nm : ≤ 0.10 dB</li> <li> Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm</li> <li> Cladding diameter : 125 ± 1 µm</li> <li> Core/ clad concentricity error : ≤ 0.6 µm</li> <li> Cladding Non-Circularity : ≤ 1.0 %</li> <li> Proof stress : ≥ 0.69 Gpa</li> <li> Fiber count (OS2 G.652D) : 2-12 pc</li> <li> Max. number of loose tube : 1 pc</li> <li> Fiber number per tube : 2 - 12 pc</li> <li> Loose tube : 2.0 ± 0.2 mm</li> <li> Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016</li> <li> Cable outer diameter : 6.5 ± 0.5 mm</li> <li> Max. allowable pulling force : 1400 N</li> <li> Crush resistance : 1000/200 N/100mm</li> <li> Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C</li> <li> Min. bending radius : installation : 20 x OD ; operation : 10 x OD</li> <li> Application: universal</li> <li> Cable jacket: LSOH</li> <li> Cable type: U-DQ (ZN) BH X E 9/125µm</li> <li> Color cable: black</li> <li> Fiber class: OS2</li> <li> Fiber diameter: 9/125µ</li> <li> Mode: Singlemode</li> <li> Number of fibers: 4</li> </ul>
