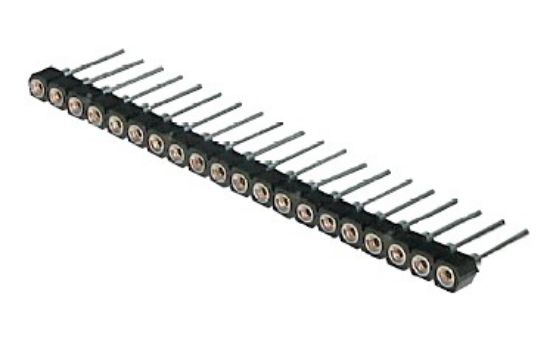

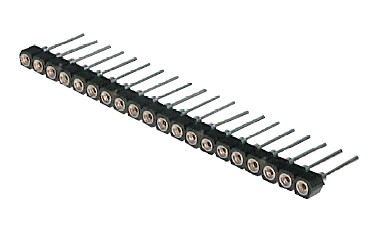

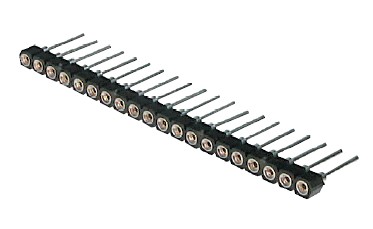

Assmann AW 127-20/Z-T

Socket, with machined contacts, 1-row (single row), L=7.43mm, pitch 2.54mm, number of contacts: 20
Üretici: Assmann
Stok Kodu: AW 127-20/Z-T
<ul> <li> Insulator material: PBT, UL94V-0</li> <li> Contact material: Sleeve - Brass, Clip - Phosphor bronze</li> <li> Plating: Ni, Au / Sn</li> <li> Contact resistance: 4mΩ max</li> <li> Insulation resistance: 10000MΩ min</li> <li> Current rating: 3A</li> <li> Operating temperature: -40°C - +105°C</li> <li> Operating voltage: 100V AC</li> <li> Test voltage: 500V AC</li> <li> No. of contacts: 20</li> <li> Plating sleeve: Z - Tin</li> </ul>
29,25 TL
26,50 TL
increase decrease
<ul> <li> Insulator material: PBT, UL94V-0</li> <li> Contact material: Sleeve - Brass, Clip - Phosphor bronze</li> <li> Plating: Ni, Au / Sn</li> <li> Contact resistance: 4mΩ max</li> <li> Insulation resistance: 10000MΩ min</li> <li> Current rating: 3A</li> <li> Operating temperature: -40°C - +105°C</li> <li> Operating voltage: 100V AC</li> <li> Test voltage: 500V AC</li> <li> No. of contacts: 20</li> <li> Plating sleeve: Z - Tin</li> </ul>
*
*
*
